Name: Graber Essentials 9/16" Single Cell Cellular Shades
Brand: Graber
SKU: 211
Price: 81.58 USD
Availability: InStock

Graber Essentials 9/16" Single Cell Cellular Shades
Sleek, Classic & Energy-Efficient Honeycomb Shades for Smaller Windows
PRODUCT OVERVIEW
Graber Essentials 9/16" Single Cell Cellular Shades offer a sleek, classic profile with everyday comfort, privacy, and energy efficiency. The 9/16" single cell design is ideal for smaller windows, creating a clean and balanced look while helping reduce heat transfer through the window. With customizable fabric colors, light control options, and easy-to-use lift systems, these shades are a practical and stylish choice for any room.
WHY CHOOSE GRABER ESSENTIALS 9/16" SINGLE CELL CELLULAR SHADES?

Sleek Classic Profile – The 9/16" single cell size offers a clean, traditional look that works especially well on smaller windows.
Energy-Efficient Comfort – Honeycomb-shaped cells help insulate windows and reduce the transfer of hot and cold air.
Versatile Light Control – Choose light filtering fabrics for soft natural light or blackout fabrics for added privacy and room darkening.
Customizable Options – Available with multiple shade styles, control types, and fabric colors to fit your home.
Everyday Style – Designed with on-trend colors that coordinate beautifully with a variety of décor styles.
Reliable Craftsmanship – Backed by Graber’s limited lifetime warranty for long-lasting peace of mind.

ENERGY PERFORMANCE

Cellular shades are one of the most versatile window treatment options for improving comfort throughout the year. Their honeycomb construction helps create a layer of insulation at the window, helping block cold air in cooler months and reduce heat transfer during warmer months.

Block the Cold – Helps reduce cold air transfer and supports a more comfortable indoor temperature.
Block the Sun – Helps reduce heat entering through the window while softening natural light.

SHADE STYLE OPTIONS

Standard – Opens from the bottom for everyday privacy and light control.
Bottom Up/Top Down – Lower the shade from the top to let in natural light, or raise it from the bottom for a full outside view. Also available with motorization.
Sun Up/Sun Down – Pair two cellular or two pleated fabrics for flexible light control and privacy.
Top Down – Lower the shade from the top to brighten the room while maintaining privacy.

LIGHT CONTROL & PRIVACY LEVELS

Light Filtering – Blocks some sunlight while offering a moderate amount of privacy. Darker colors may provide more privacy than lighter colors.
Blackout – Blocks all sunlight and provides complete privacy, making it a great choice for bedrooms, nurseries, media rooms, and other room-darkening spaces.

CONTROL TYPE OPTIONS

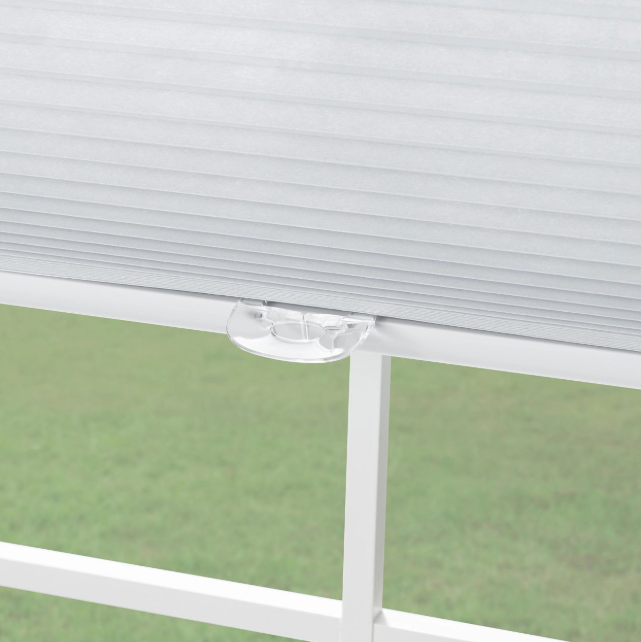

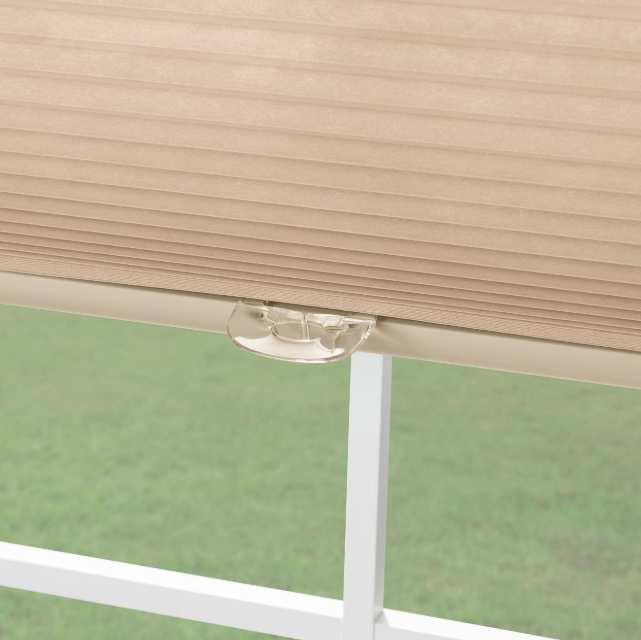

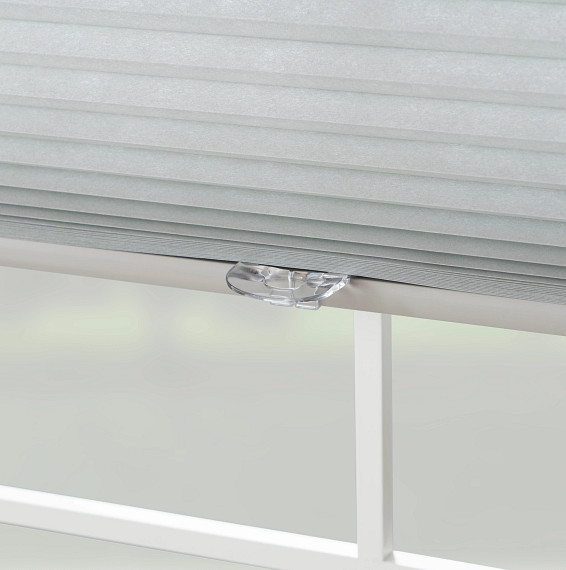

Cordless Lift – Raise and lower the shade by gently pulling on the bottomrail for smooth, easy operation.
Continuous Loop Lift – Cord loop raises and lowers the shade, while the safety tensioner helps keep the cord secure.
Motorized Lift – Control your shades with a remote or home automation app for added convenience.

CUSTOMIZATION & FEATURES

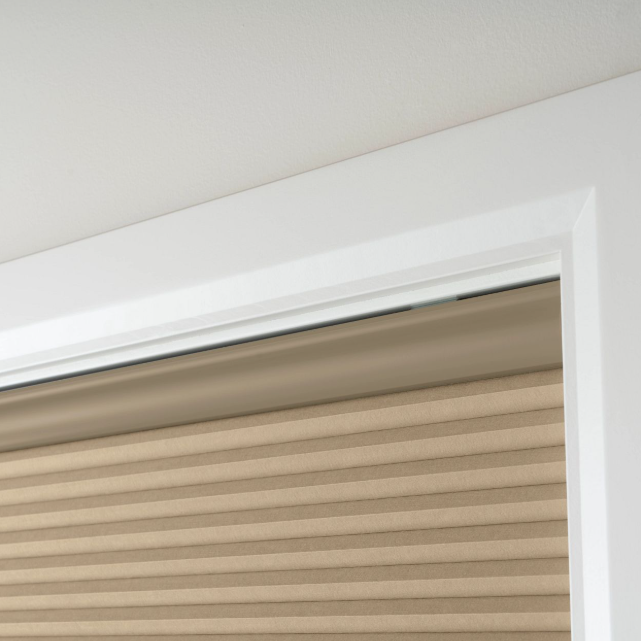

Color-Coordinated Headrail & Bottomrail – Custom cellular shades include aluminum headrails and bottomrails designed to coordinate with the selected fabric.
Wide Window Solutions – Available in vertical cellular options for wide windows and patio doors.
Specialty Shapes – Available for select specialty window shapes, including arches and skylights.
On-Trend Fabric Colors – Choose from a range of versatile colors to match your home’s style.
Energy-Efficient Honeycomb Design – Helps improve comfort by reducing heat transfer at the window.

IMPORTANT ORDERING INFORMATION

Inside Mount Light Gaps – Inside mount shades may have slight light gaps due to factory deductions and hardware requirements.
Finished Shade Size – Shade dimensions and deductions may vary based on selected lift system, control type, and mounting option.
Energy Performance – Energy efficiency may vary depending on fabric type, window type, cell size, and installation.

MEASUREMENTS
Installation measurements are listed under the "Specifications" tab.
THINGS TO KNOW

Free samples available: https://blindsmax.com/information-library/free-samples
Production and delivery time: Roughly 12 business days.
Free shipping when order has a width under 96"
Live U.S. support Mon–Fri 9 AM–5 PM ET at 1-888-305-8020 or Info@Blindsmax.com.
Professional measure & install services available in select areas.

NEED HELP?

Call: 888-305-8020
Email: sales@blindsmax.com

SHOP GRABER ESSENTIALS 9/16" SINGLE CELL CELLULAR SHADES TODAY
Bring clean style, privacy, comfort, and energy-efficient performance to your windows with Graber Essentials 9/16" Single Cell Cellular Shades.

SIZE CONSIDERATIONS OVERVIEW
Graber Essentials Cellular Shades are available in several lift styles, shade configurations, and specialty applications. Size availability may vary depending on fabric type, lift system, shade style, and whether the shade is ordered as a single shade or multiple shades on one headrail.
For all inside mount applications, a 3/8" deduction is taken by the manufacturer on the overall width.
CORDLESS LIFT SHADES
STANDARD CORDLESS LIFT SHADE

Minimum Width: 9"
Maximum Width: 120"
Minimum Height: 9"
Maximum Height: 86"
Maximum Fabric Width: 144"

CORDLESS LIFT MULTIPLE SHADES ON ONE HEADRAIL

Minimum Panel Width: 9"
Maximum Panel Width: 120"
Maximum Shade Width: 144"
Minimum Shade Height: 9"
Maximum Shade Height: 86"
Maximum Fabric Width: 144"

CORDLESS LIFT BOTTOM UP/TOP DOWN

Minimum Width: 15"
Maximum Width: 96"
Minimum Height: 9"
Maximum Height: 86"
Maximum Fabric Width: 144"

IMPORTANT NOTES FOR CORDLESS LIFT SHADES

Side mount brackets are available on shades 60" or smaller.
Cordless lift shades are not available on two-on-one or three-on-one headrail configurations.
Cordless lift shades are considered a safer window shade option for homes with children and pets.

CORDLESS LIFT INSIDE MOUNT DEPTH REQUIREMENTS
FOR 9/16" SINGLE CELL CELLULAR SHADES:

Headrail Dimensions: 1 9/16" x 2 1/8"
Minimum Depth Mount: 5/8"
Flush with Casing: 2 1/8"

Note: Cordless lift depth requirements also apply to motorized lift shades.

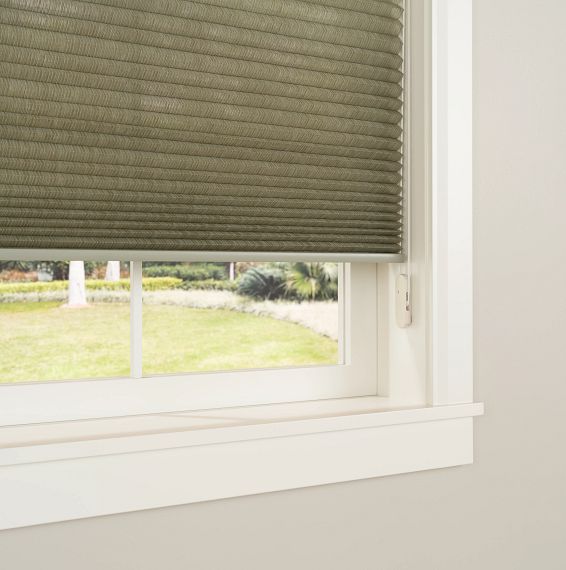

CONTINUOUS-LOOP LIFT SHADES

Minimum Width: 18 1/2"
Maximum Width: 144"
Minimum Height: 9"
Maximum Height: 144"
Maximum Fabric Width: 144"

CONTINUOUS-LOOP LIFT MULTIPLE SHADES ON ONE HEADRAIL

Minimum Panel Width: 18 1/2"
Maximum Panel Width: 120"
Maximum Shade Width with Single Control: 120"
Maximum Shade Width with Multiple Controls: 144"
Minimum Shade Height: 9"
Maximum Shade Height: 144"
Maximum Fabric Width: 144"

IMPORTANT NOTES FOR CONTINUOUS-LOOP LIFT SHADES

For all inside mount applications, a 3/8" deduction is taken by the manufacturer on the overall width.
A small end shade is available with continuous-loop lift. See continuous-loop lift section in shade options.
See continuous-loop lift area limit chart for size restrictions by fabric type.
Continuous-loop lift is available for two-on-one or three-on-one headrail configurations.
Side mount brackets are available on shades 60" or smaller.

CONTINUOUS-LOOP LIFT AREA LIMITS
9/16" SINGLE CELL BLACKOUT
Maximum Shade Size: 20,800 square inches
9/16" SINGLE CELL LIGHT FILTERING
Maximum Shade Size: 20,800 square inches
Note: 9/16" single cell fabrics are available up to 144" wide by 144" high.
CONTINUOUS-LOOP LIFT INSIDE MOUNT DEPTH REQUIREMENTS
FOR 9/16" SINGLE CELL CELLULAR SHADES:

Headrail Dimensions: 1 9/16" x 2 1/8"
Minimum Depth Mount: 5/8"
Flush with Casing: 2 1/8"

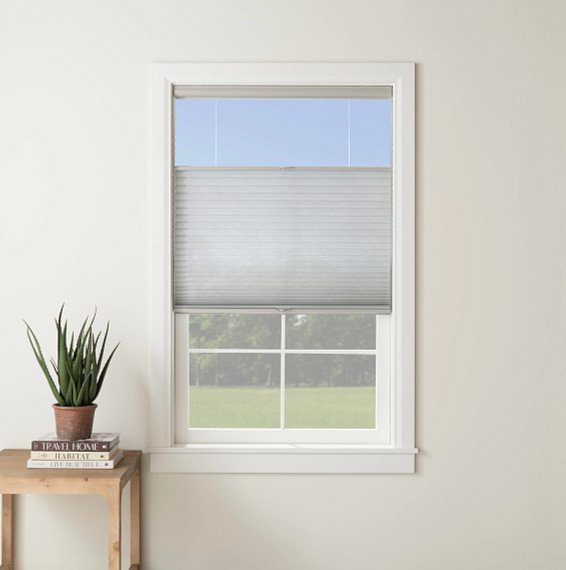

BOTTOM UP/TOP DOWN CORDLESS LIFT

Minimum Width: 15"
Maximum Width: 96"
Minimum Height: 9"
Maximum Height: 86"

IMPORTANT NOTES

Bottom Up/Top Down is optional for privacy while still allowing natural light.
Suggested for windows where customers can comfortably raise and lower the shade by hand.
Operate the shade using both handles on each rail to raise and lower evenly.
Side mounts are available up to 60" wide.
Not available with multiple shades on one headrail.

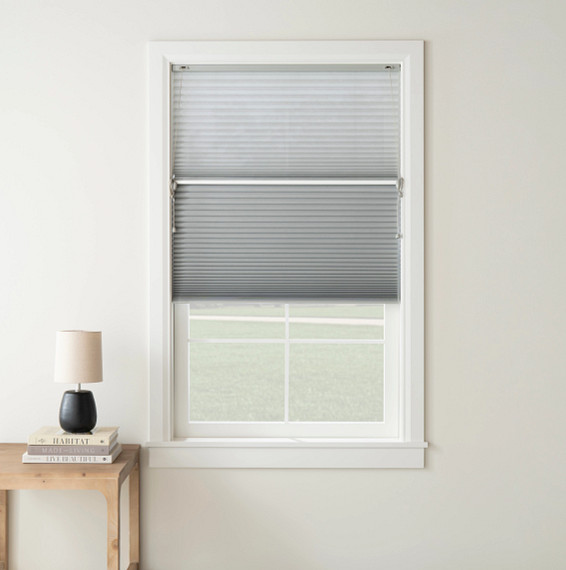

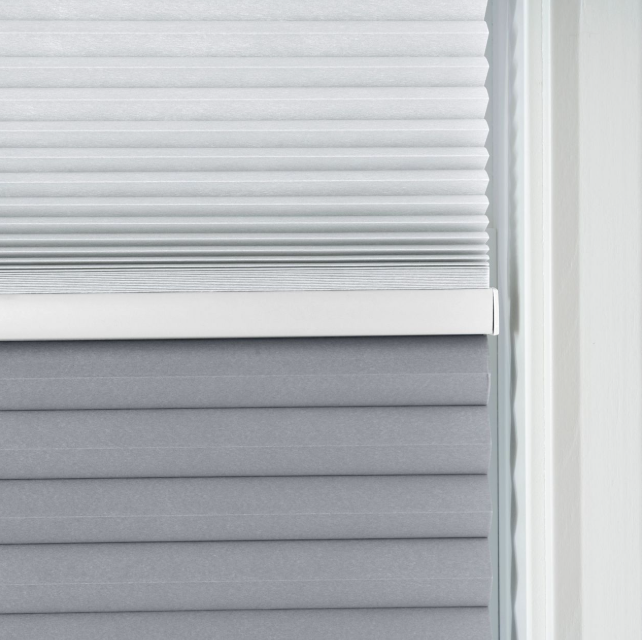

SUN UP/SUN DOWN CORDLESS LIFT

Minimum Width: 15"
Maximum Width: 96"
Minimum Height: 12"
Maximum Height: 86"

IMPORTANT NOTES

Sun Up/Sun Down is ideal for combining light filtering and blackout fabrics for flexible light control and privacy.
The headrail coordinates with the top fabric.
The bottomrail coordinates with the bottom fabric.
Midrail will match the headrail by default, but can be specified to match the bottomrail at time of order.
Operate the shade using both handles on each rail to raise and lower evenly.
Side mounts are available up to 60" wide.
Not available with multiple shades on one headrail.

MULTIPLE SHADES ON ONE HEADRAIL
CORDLESS LIFT MULTIPLE SHADES ON ONE HEADRAIL

Cordless lift is not available as two-on-one or three-on-one headrail.
If shade widths exceed the fabric width, shades are made as two or three shades on one headrail at no charge.
Maximum Overall Size for Multiple Shades: 144" x 86"
Maximum Size with Side Mount: 60" x 86"
Control Locations: Not applicable
Gap: 3/8"

CONTINUOUS-LOOP LIFT MULTIPLE SHADES ON ONE HEADRAIL

Available as two-on-one or three-on-one headrail.
If shade widths exceed the fabric width, shades are made as two or three shades on one headrail at no charge.
Side mount brackets are available on shades 60" or smaller.

CONTINUOUS-LOOP LIFT: SINGLE CONTROL SHADE

Maximum Overall Size for Multiple Shades: 120" x 144"
Maximum Size with Side Mount: 60" x 96"
Gap: 1/2"

CONTROL LOCATIONS:

Two-on-one: Common lift cord can be on the right or left to operate both shades at the same time.
Three-on-one: Common lift cord can be on the right or left to operate all shades at the same time.

CONTINUOUS-LOOP LIFT: MULTI CONTROL SHADE

Maximum Overall Size for Multiple Shades: 144" x 144"
Maximum Size with Side Mount: 60" x 96"
Gap: 1/2"

CONTROL LOCATIONS:

Two-on-one: Left shade left control, right shade right control.
Three-on-one: Left shade left control, right shade right control, middle shade common lift cord to the right or left.
If continuous-loop lift cannot be used in the middle of the headrail on multiple shades, it will not be an available option.

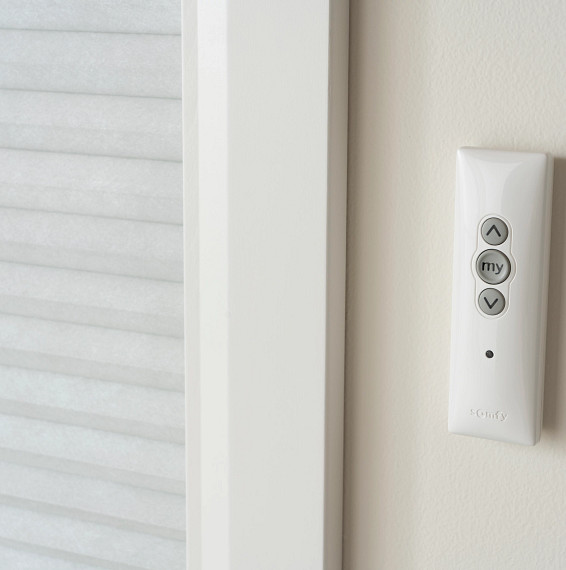

MOTORIZED SHADE FEATURES
SIMPLE RTS MOTORIZED LIFT

Minimum Width: 20"
Maximum Width: 72"
Minimum Height: 9"
Maximum Height: 72"

IMPORTANT NOTES

Motor is located on the right side within the headrail.
Available as corner and bay window applications.
Not available with multiple shades on one headrail.
Not available with hold-down brackets or side mount brackets.
Control option available: Remote.

SIMPLE RTS SIZE CONSIDERATIONS

9/16" Single Cell Blackout Maximum Shade Size: 3,000 square inches
All Other Fabrics Maximum Shade Size: 7,500 square inches

SIMPLE RTS POWER SIZE RECOMMENDATIONS
9/16" SINGLE CELL BLACKOUT:

Single Battery Tube: Less than 2,000 square inches
Dual Battery Tube: Less than 3,500 square inches
Plug-In Transformer: Less than 7,500 square inches

ALL OTHER FABRICS:

Single Battery Tube: Less than 3,500 square inches
Dual Battery Tube: Less than 6,000 square inches
Plug-In Transformer: Less than 7,500 square inches

Note: Power source recommendations are based on motor type, shade size, and fabric type.
MOTORIZED INSIDE MOUNT DEPTH REQUIREMENTS
FOR 9/16" SINGLE CELL CELLULAR SHADES:

Headrail Dimensions: 1 9/16" x 2 1/8"
Minimum Depth Mount: 5/8"
Flush with Casing: 2 1/8"

THINGS TO KNOW

Size availability may vary by fabric, lift system, control type, and shade style.
Inside mount shades will have manufacturer deductions.
For the best fit, always review the selected lift system and product specifications before ordering.
For large windows, multiple shades on one headrail or continuous-loop lift may be required depending on the selected size and fabric.

DEDUCTIONS

When you order the inside mount option, a deduction is built into the width of the fabric/material so the product will fit inside the window opening and operate correctly. This also helps prevent the blind or shade, and the window frame itself, from being damaged during use.
When a product is ordered as outside mount, the manufacturer does not make any deductions.

Useful Links

Inside Mount

IMPORTANT: For inside mounted blinds, measure the actual window opening size. Please do not make deductions. Our factory will take all necessary allowances to ensure proper fitting.

STEP 1 - Find the width: Measure the exact width your window in 3 places – across the top, across the middle, and across the bottom. Record the measurements rounding down to the nearest 1/8".Use the narrowest of the three measurements when ordering the width. Do not make any additional width deductions – the factory will make the appropriate deductions.

STEP 2 - Find the height: Measure exact distance rounding up to the nearest 1/8" from inside surface at top of window to the window sill at the left, middle, and right. Use the longest measurement when ordering the height.

Outside Mount

TIP: For optimal light control, allow the blind to overlap 1 1/2" – 3" on the sides, top, and bottom of the window. You'll need to add this to your measurements.

STEP 1 - Find the width: Measure exact distance to the nearest 1/8" between the outermost points where the blind is to be placed. For optimum light control, this measurement should extend at least 3/4" beyond the window opening on each side (or 1 1/2" for the entire width)

STEP 2 - Find the height: Measure exact distance to the nearest 1/8" from where top of blind will be located to the top of the window sill. If there is no sill, or if blind is to overlap the window frame, measure to the point where the blind is to reach.

Still need help measuring? Click here to locate a professional installer in your area.

Documents

Cellular Shades - Cordless Lift - Inside/Ceiling/Outside Mount - Installation Guide

Light Filtering

Color Name	Max Width	May Be Railroaded
Bagel	144"
Oxford Brown	144"
Stately Gray	144"
Timeless Taupe	144"
Whitetail	144"

Blackout

Color Name	Max Width	May Be Railroaded
Bagel	144"
Oxford Brown	144"
Stately Gray	144"
Timeless Taupe	144"
Whitetail	144"

Limited Lifetime Warranty

Covered by the Warranty

Original defects in materials or workmanship for as long as the original purchaser owns the product (unless shorter periods are noted below), assuming the product was properly installed
All internal mechanisms, components, and brackets
For three (3) years from the date of purchase: operating cords, pleated shades without looped tape, 2" horizontal vinyl blinds slats, and vertical blinds vanes
For five (5) years from date of purchase: motorization components and accessories (batteries not included), draperies, fabric covered cornices and valances, soft shades and accessories, exterior solar shades (provided they are fully raised during inclement weather and windy conditions)
Repairs under this warranty will be made with like or similar parts

Not Covered by the Warranty

Normal wear and tear
Damage caused by abuse, accidents, alterations, misuse; failure to follow instructions for measurement, installation, use, cleaning, or maintenance
Discoloration, fading, cracking, shrinking, or stretching caused by long exposure to direct sunlight
Slight color variation; natural variations in color, grain, or weave of natural materials
Slight warpage of wood blinds or shutters; excessive warpage caused by high humidity
Shipping or labor costs incurred by taking product down, re-measuring, or re-installation
Unfinished cornices and valances; Palladian shelves
Fabric used for “Customer's Own Material” orders

Warranty claims must be accompanied by the original sales receipt as well as details regarding the nature of the problem, location of the product, etc. Warranty claims may be submitted to the customer service center at:

The obligations of Springs Window Fashions are limited to the replacement or repair of parts or products found to be defective. It is at the sole discretion of Springs Window Fashions to determine whether product will be replaced or repaired.

THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER WRITTEN OR ORAL WARRANTIES OR OBLIGATIONS AND LIABILITIES. THE DURATION OF ANY IMPLIED WARRANTIES FOR ANY PRODUCT IS LIMITED IN DURATION TO THE WARRANTY TERM APPLICABLE TO SUCH PRODUCT AS SET FORTH ABOVE.

Some states do not allow the exclusion or limitation of incidental, punitive, or consequential damages, so this limitation or exclusion may not apply to you.

No person is authorized to extend or alter this warranty.

Need Help?

Graber Essentials 9/16" Single Cell Cellular Shades

Room Or Nickname:

Select Size:

Measuring Basics:

Headrail Selection:

Left Shade

Right Shade

Left Shade

Center Shade

Right Shade
